AC750 coverage beyond the main router

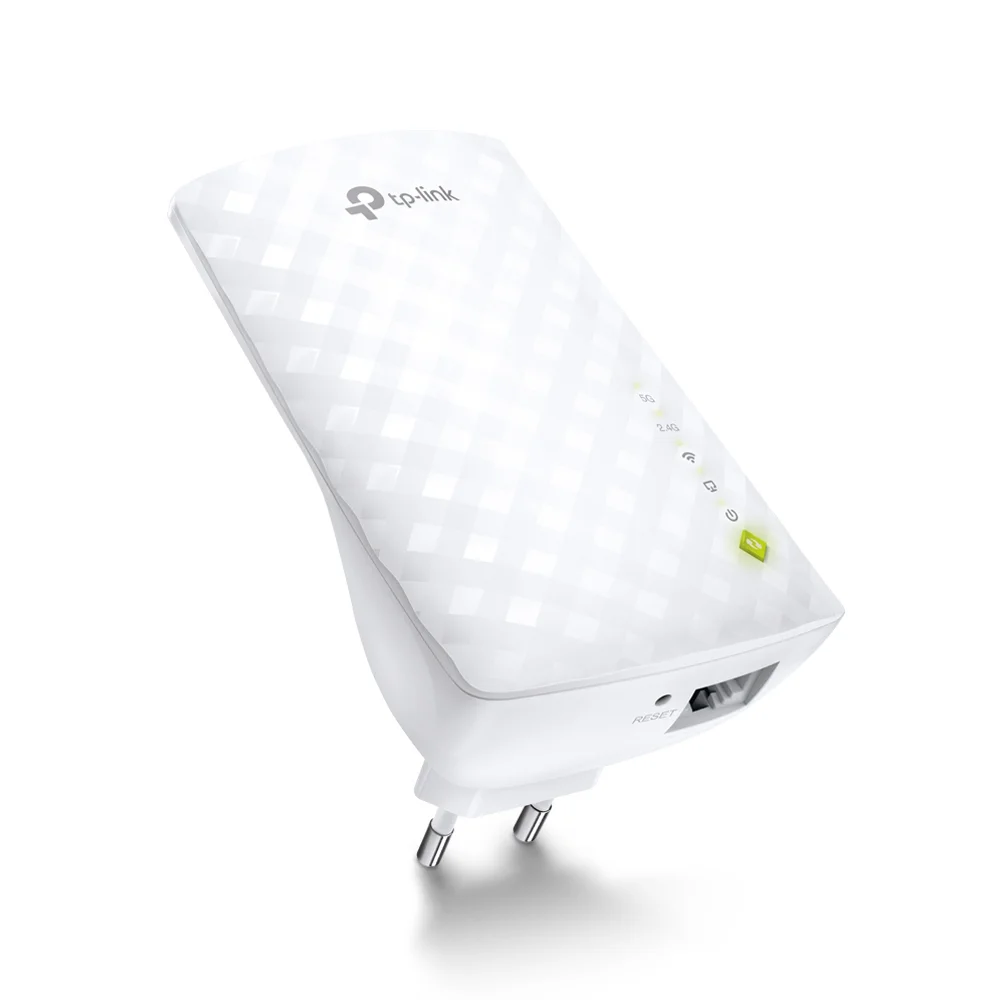

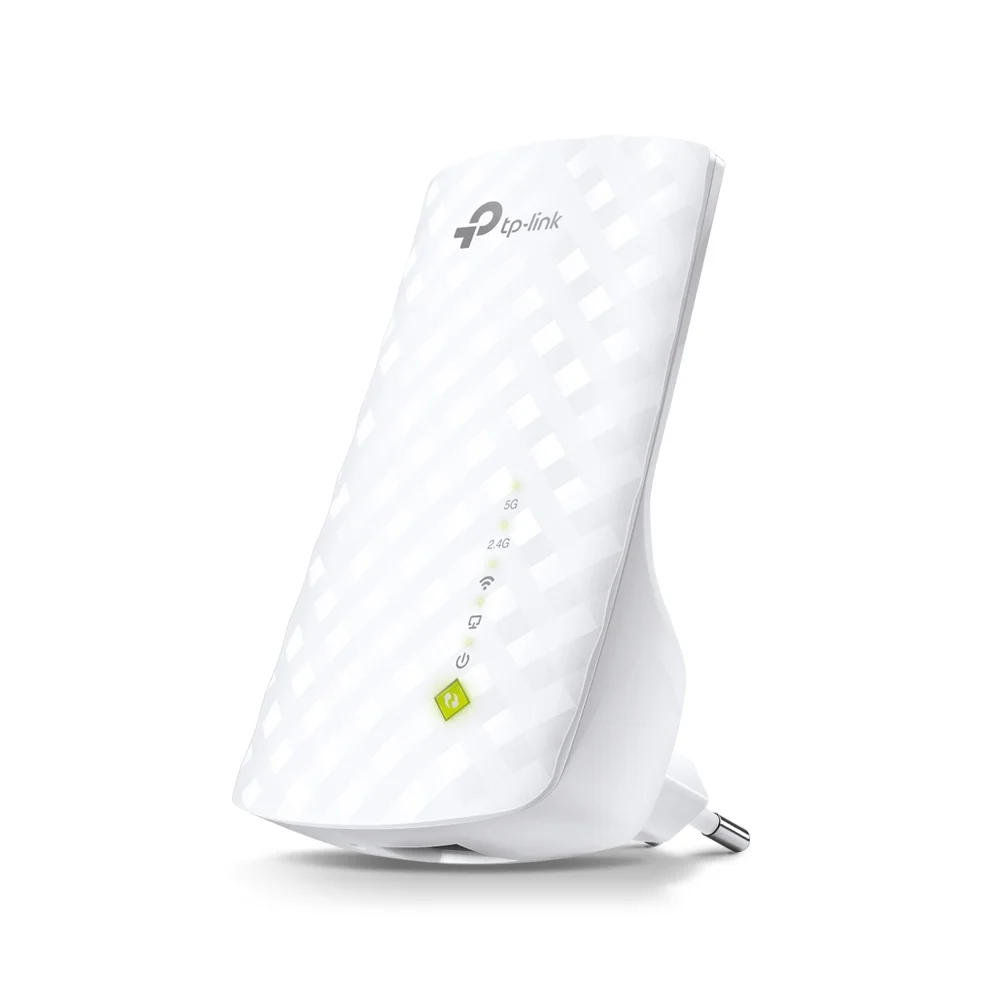

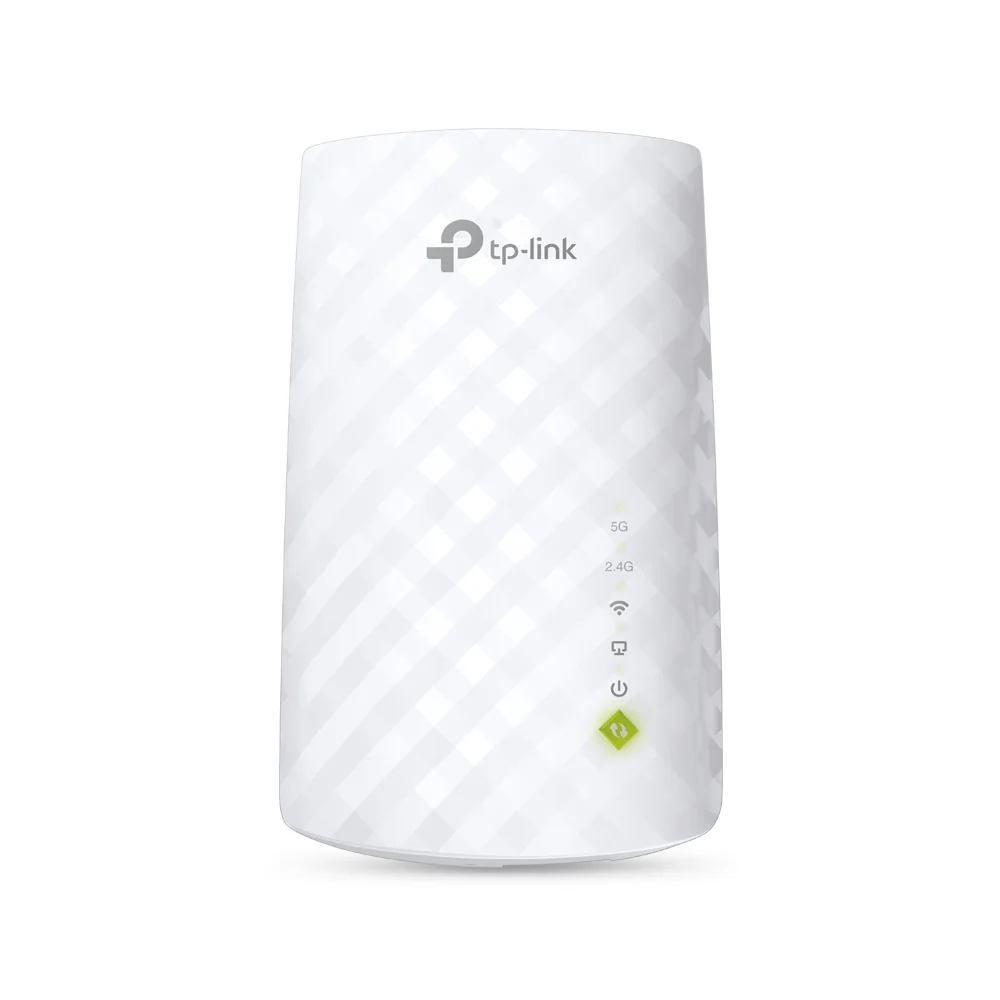

The TP-Link RE200 is a compact, wall-powered Wi-Fi range extender for extending an existing network into a room or area with weaker reception. It is useful when planning connectivity for a television, laptop or other supported device beyond the comfortable reach of the main router.

Wireless and Ethernet specifications

TP-Link lists wireless link rates of up to 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz for the AC750 RE200. These are maximum radio-link rates, not a guaranteed internet throughput figure, and the two bands are not added together for a single device connection.

• Model: TP-Link RE200.
• Wireless class: Dual-band AC750.
• Ethernet: One 10/100 Mbps RJ45 port, usable for a wired-device connection.

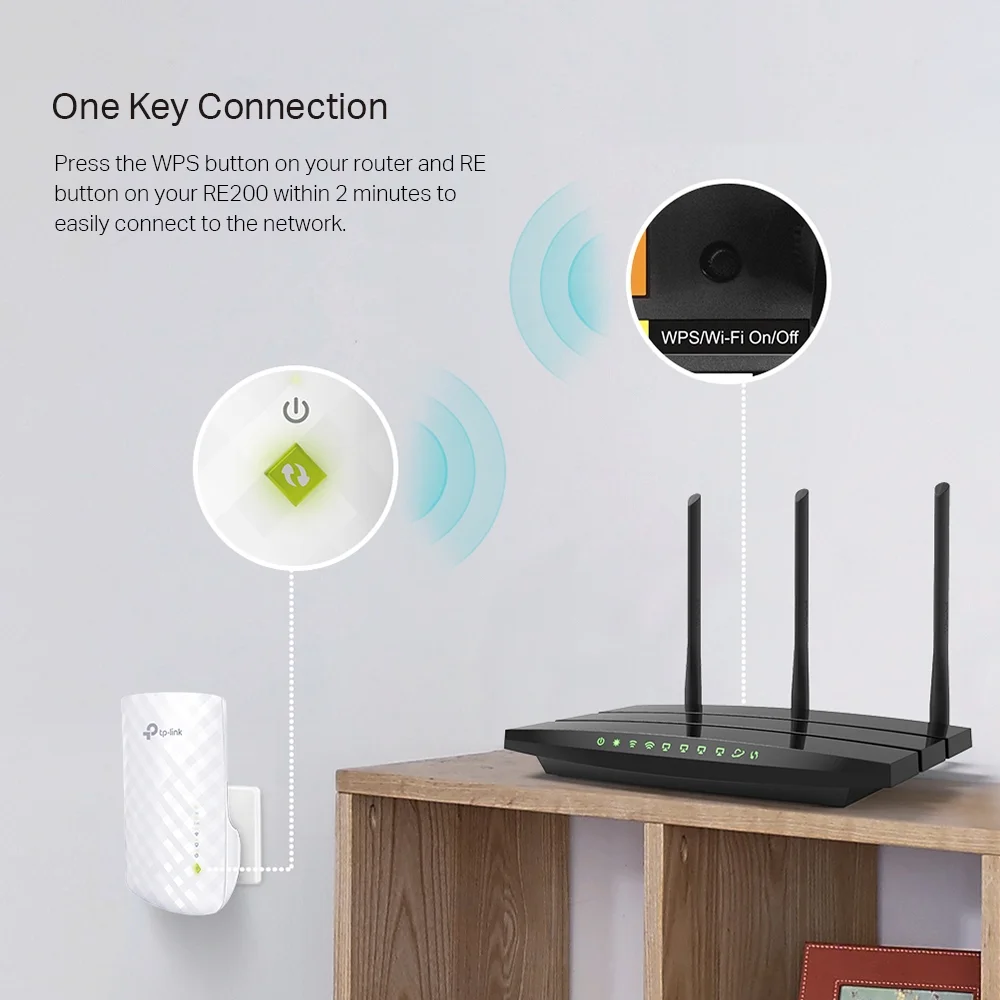

• WPS and reset controls, with a signal indicator for placement.
• TP-Link Tether support for compatible hardware/firmware.

This is a Fast Ethernet connection, with a nominal 100 Mbps maximum port rate, not Gigabit Ethernet. The port can therefore limit a wired connection even where the Wi-Fi link has a higher advertised rate.

Mesh and router compatibility

OneMesh is documented for supported RE200 versions used with a compatible router. It is not a promise that every RE200 revision can join any mesh system. Check the hardware label, installed firmware and router model before relying on a shared-name mesh or roaming feature.

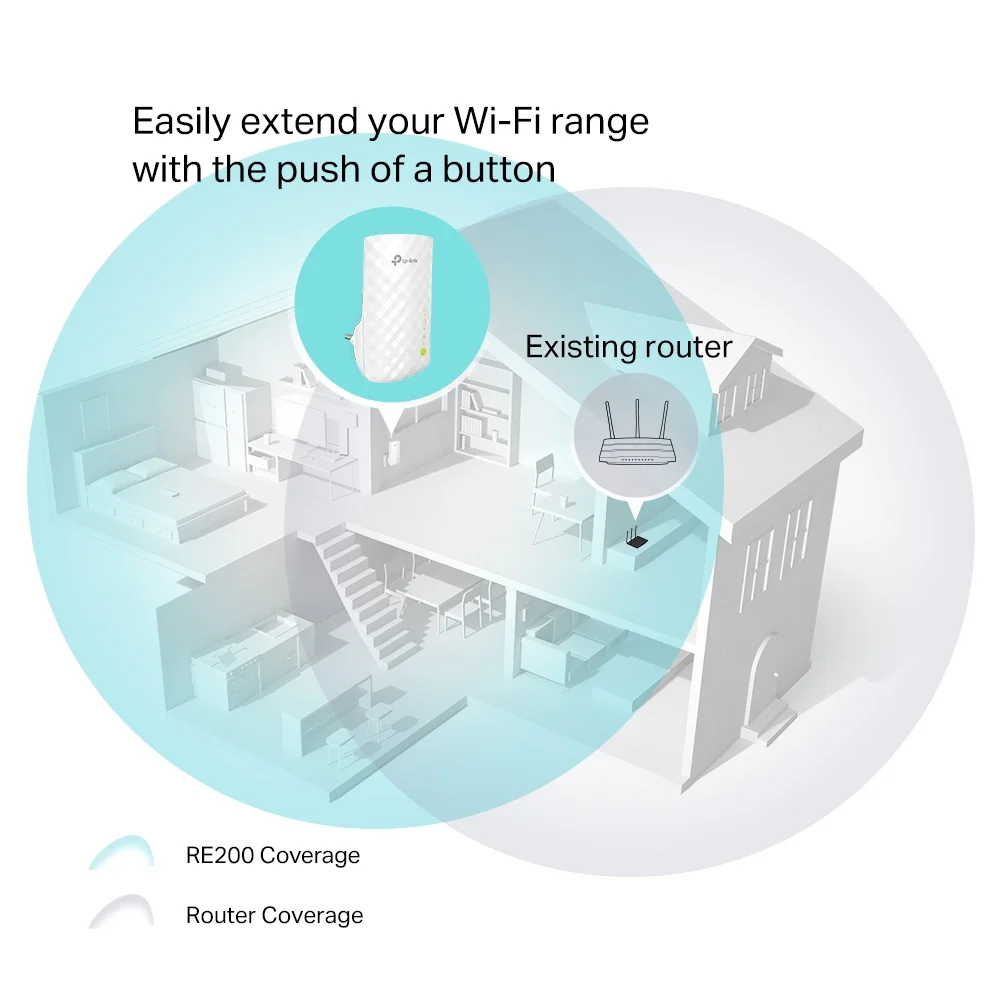

Positioning and setup

Choose a socket where the extender still receives a good router signal, then use the indicator and setup instructions to assess the position. A socket inside the dead zone may not provide a useful upstream connection. Thick walls, interference, traffic and the broadband service all influence performance; uninterrupted streaming or coverage in every corner is not guaranteed.

Confirm the supplied plug type and hardware version with the team. The product package is the RE200 extender with its installation information; no router or paid internet service is included.
